a2z Pegboard Ultra Jig

The a2z Pegboard Ultra Jig is for use with the a2z Universal Base, as part of the a2z laser jig system.

How the a2z jig system works

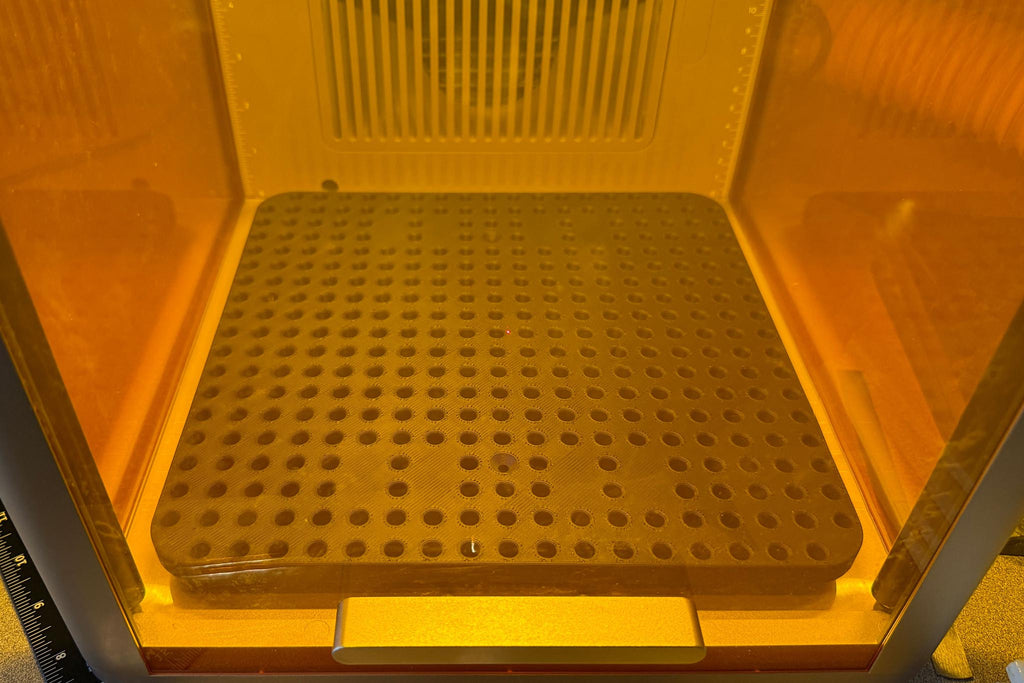

This jig works with the a2z Universal Base. The system is simple: the base mounts to your laser bed once and gets centered once — that's the only alignment you ever do. After that, this jig and every other a2z insert locate to that same base and land in exactly the same spot, every time. Switch from pegboard work to coins to tumblers in seconds, and the engraving files you've already dialed in keep lining up without test marks or re-framing.

1. Mount the Universal Base once. One-time setup, centered on your laser.
2. Set this jig on the base for today's job. Same base, same position, as every a2z insert.
3. Engrave with repeatable positioning. No re-alignment between jobs — ever.

The a2z Pegboard can also be mounted directly to the base of the xTool F1 Ultra & F2 Ultra series using included M4 bolts if you would like to use it without the Universal Base. It can also be directly mounted to any galvo laser bed with M5 or M6 threads and with standard 25mm on center spacing, though won't be centered on laser unless bed is centered.

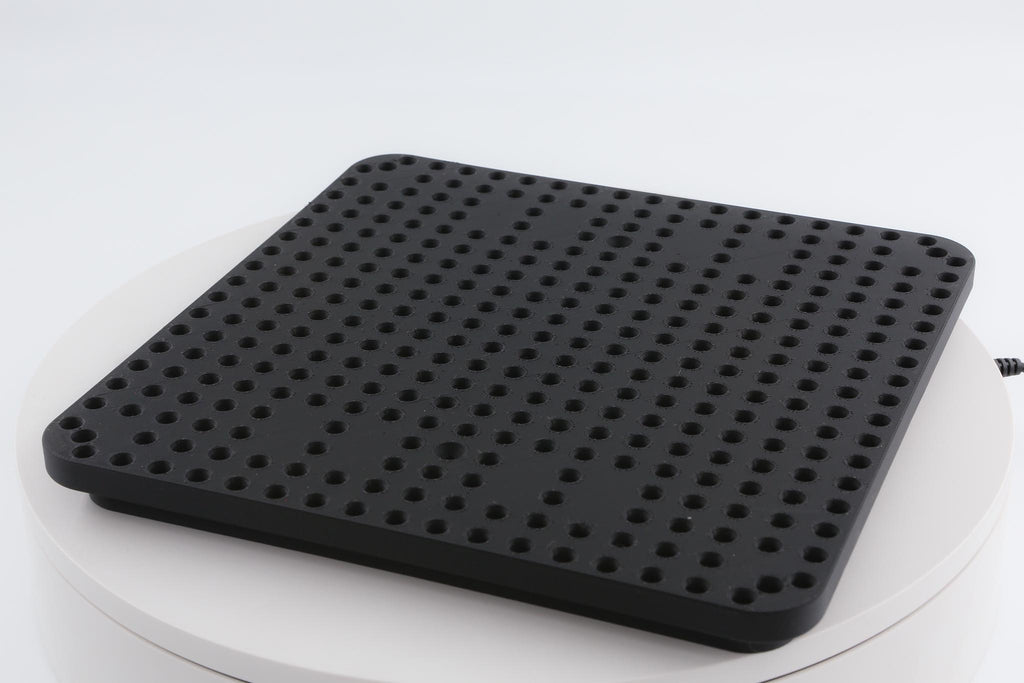

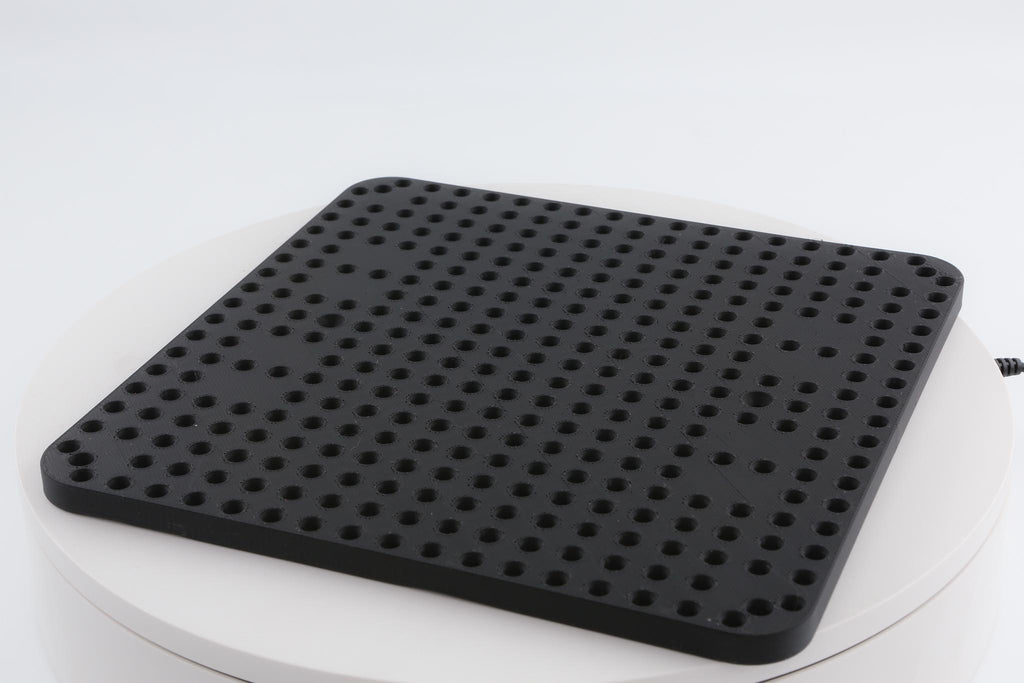

This jig has a grid of 6mm holes at 12.5mm spacing across its whole surface. 6mm stainless steel pegs can be placed anywhere for repeated alignment. The outermost dowel holes when utilized align items on the boundary of the engraveable area of the xTool F1 and F2 Ultra series.

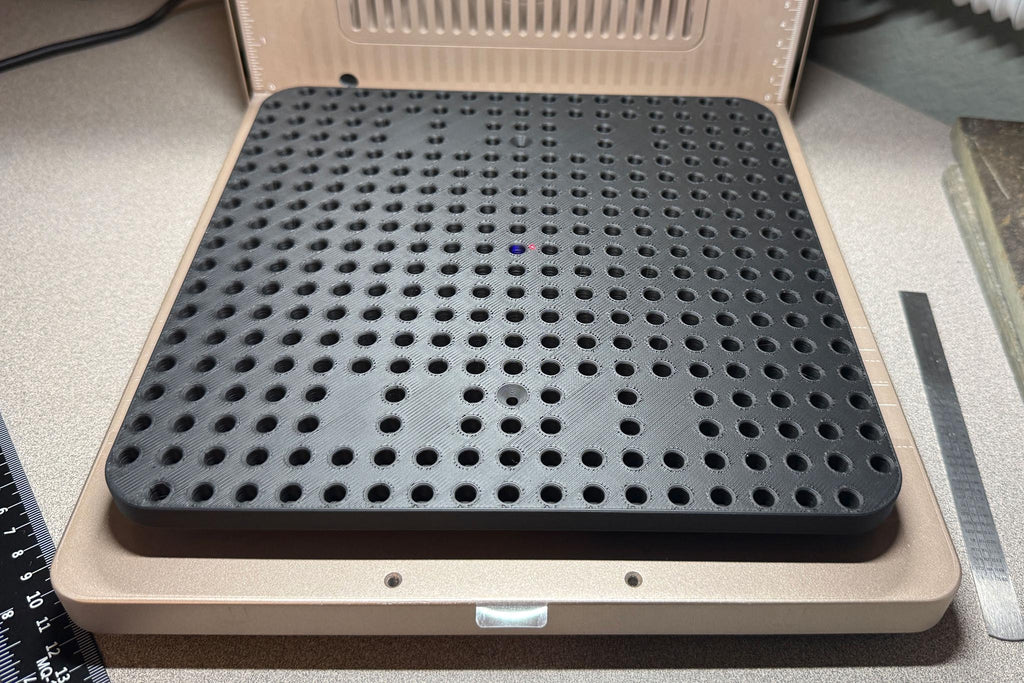

This jig mounts on top of the Universal Base and is secured in place with embedded magnets.

Includes:

• 1x Pegboard Ultra
• 8x stainless steel dowel pegs

Runs on the a2z Universal Base (shown in photos, sold separately) — add the base once and every a2z insert clicks in with zero re-alignment. xTool F1 Ultra / F2 Ultra owners: pair it with the Universal Base Ultra instead.
