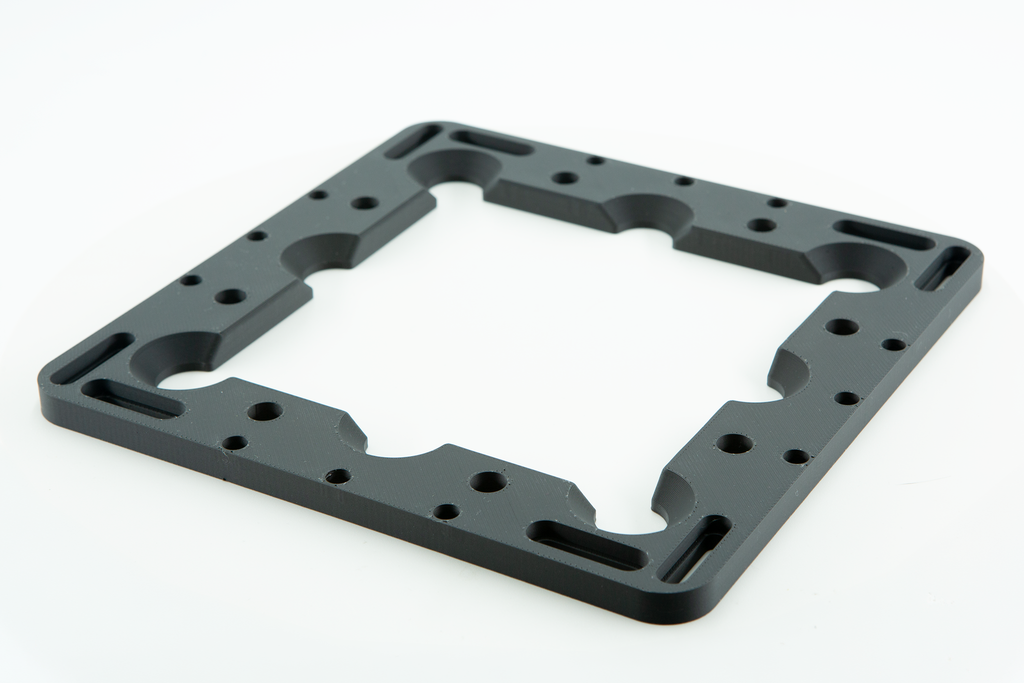

a2z Universal Base X/Y Fixture

a2z Universal Base X/Y Fixture for the a2z laser jig system.

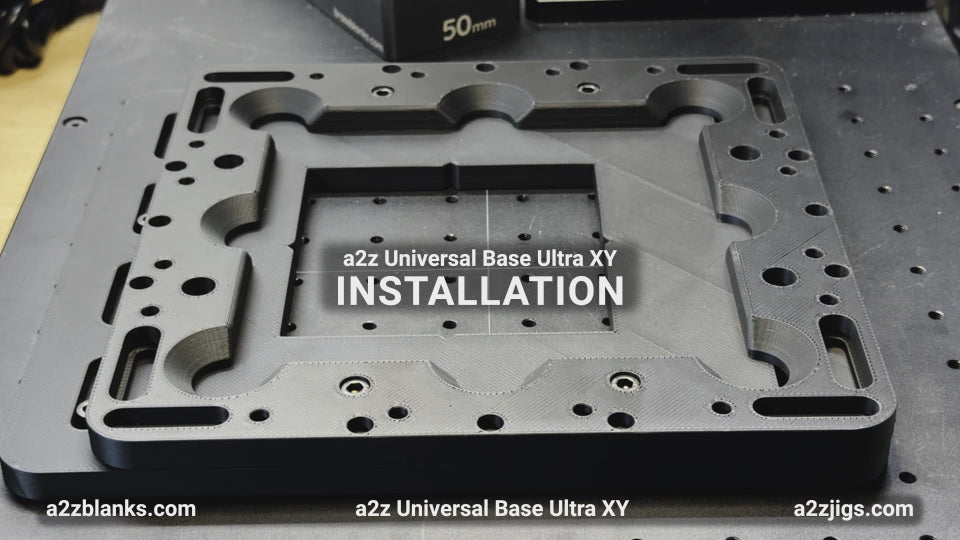

The Universal Base Ultra with the X/Y Fixture Accessory allows for infinite X/Y positioning adjustment of the Universal Base Ultra under your galvo laser for perfect centering of the base. The X/Y Fixture can be secured to any galvo laser base with 25mm on center spacing threaded holes with m5 or m6 threads, though it can be used with m4 or even m3 threads using a washer.

The Universal Base X/Y Fixture is 50% off when purchased with the Universal Base Ultra.

If you want perfect X/Y centered alignment with the Universal Base Ultra without the need for the X/Y Fixture, there is a CUSTOM option to have a base plate made for you with custom positioning of the embedded mounting holes so your a2z Base is centered on your laser.

Includes:

• 1x Universal Base X/Y Fixture
• 4x M5 Socket Head bolts and Flat nuts (to mount to Universal Base)
• 1x M5 Allen Wrench
