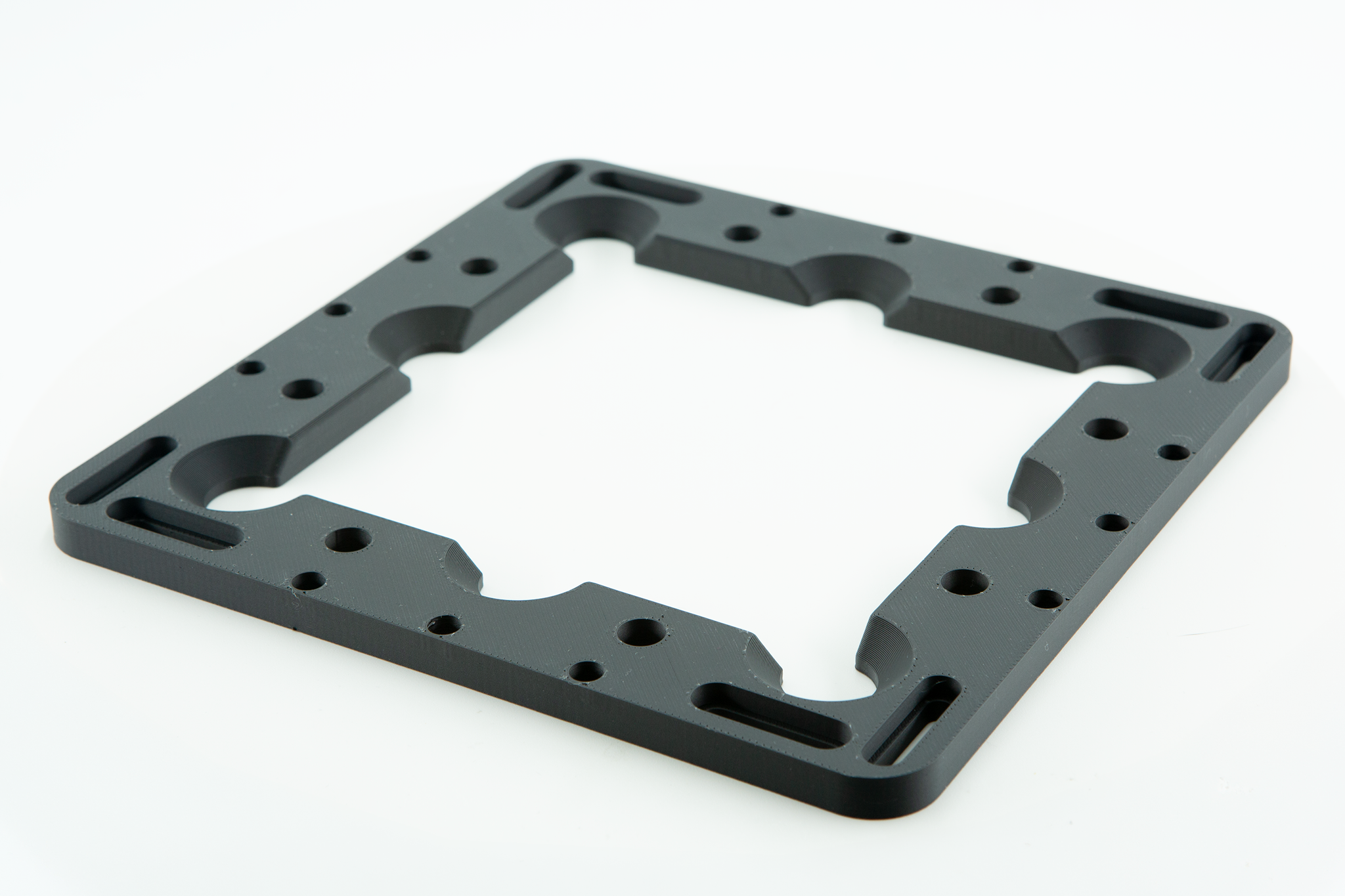

a2z Universal Base Custom

a2z Base Custom for the a2z laser jig system.

How the a2z jig system works

Every jig I make clicks into this base. You mount the base to your laser bed once, center it, and never touch it again. From then on, any a2z insert jig — coin, tumbler, coaster, golf ball, whatever the job calls for — drops into the same 150mm opening and lands in the same spot every time. No re-framing, no test marks, no nudging the workpiece around the bed. Swap jigs in seconds between jobs and your files keep lining up, run after run.

1. Mount the base once. Bolt it to your bed and center it on your laser. This is the only alignment you'll ever do.
2. Click in the jig for today's job. Every a2z insert jig fits the same opening.
3. Engrave with repeatable positioning. Same spot, every jig, every time — no re-alignment.

This is the same base as the a2z Base XF Ultra, but it is custom printed to center the jig on your laser bed using the custom placed mounting holes. This item does require you to make some measurements on your galvo laser. The centering will only be as accurate as your measurements.

The base can also be secured to the F1 Ultra and F2 Ultra laser bed using the fixed mounting holes.

The inner area of the base plate is 150mm square. Though this base plate was optimized for galvo lasers with a 150mm lens, this can be used with any galvo laser lens length.

Includes:

• 1x Universal Base with custom positioned mounting holes
• 4x M5 or M6 Socket Head Bolts
• 1x M5 or M6 Allen Wrench
